Hydraulic stacking system to raise shovels

Afkos Industries successfully commissioned a hydraulic stacking system to raise shovels in Indonesia.

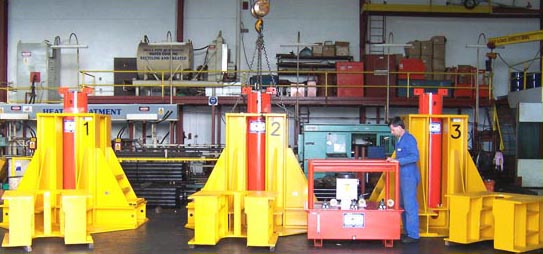

The hydraulic jacks each have a capacity of 565 ton and a stroke of 1,700mm. The long stroke eliminates the need for multilifts with packers all in a single lift.

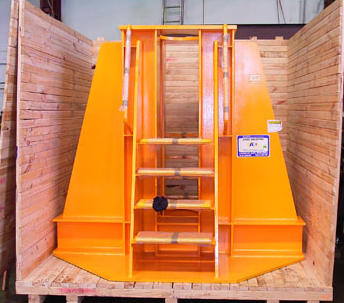

Each jack carries a weight of 2.1 ton with a pressure rating of 700 BAR. The base cradles are 2.3 metres in diamter at the bases and manufactured to house each jack. The weight of each base is 4.2 ton. Each hydraulic jack is fitted with an anti-intensification valve and a safety load lowering valve.

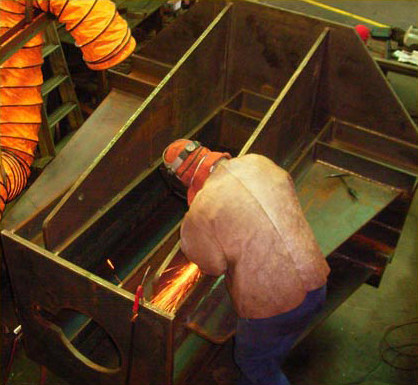

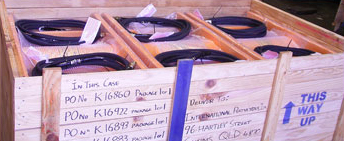

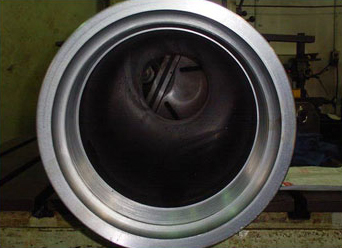

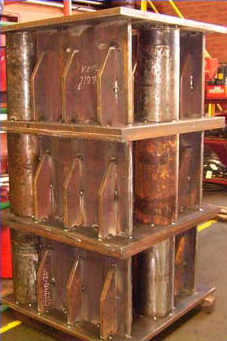

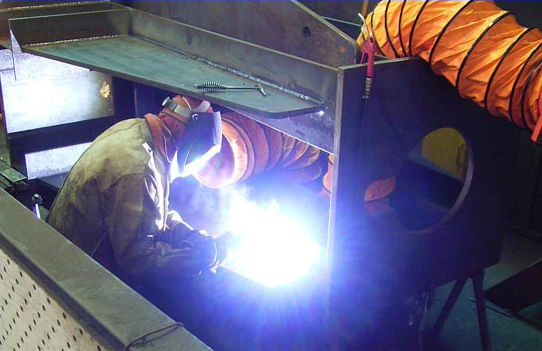

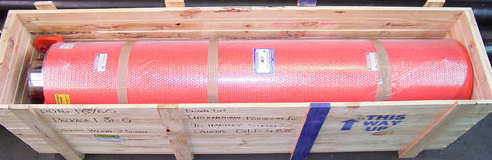

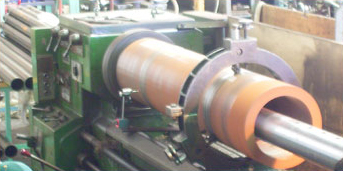

All components are manufactured by Afkos Industries. These images detail the process of design, manufacturing and commissioning of the equipment.

shovellifting16

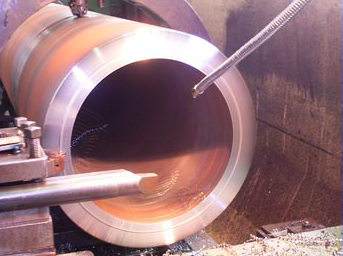

shovellifting01

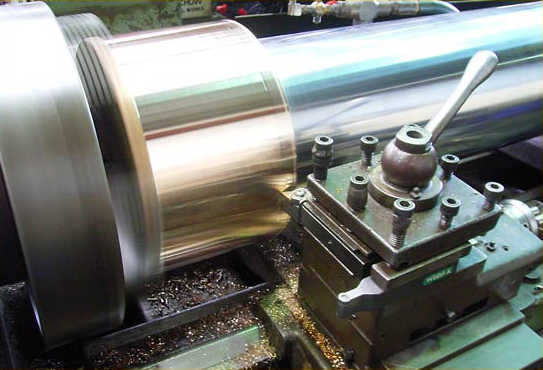

shovellifting02
shovellifting03

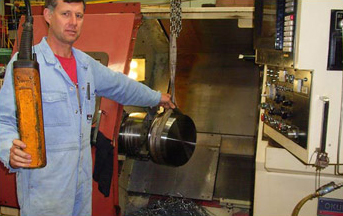

shovellifting04
shovellifting05

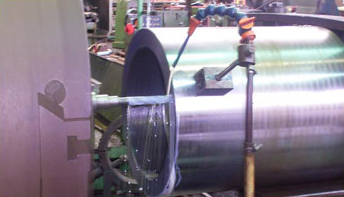

shovellifting06
shovellifting07
shovellifting08

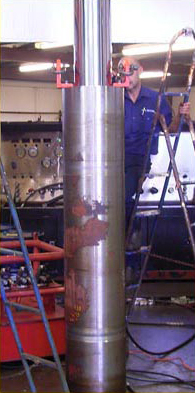

shovellifting09
shovellifting10
shovellifting11
shovellifting12
shovellifting13
shovellifting14
shovellifting15
shovellifting17
shovellifting18
shovellifting19
shovellifting20
